EPC Certificates

the code on function drawGraph($energy, $climate) is this:

...
if($r_energy <= intval($configClass)){

$e_height = 0;
$img = Amais;

}elseif(in_array($r_energy, range(intval($configClass) + 1,intval($configClass)))){

$e_height = 37;
$img = A;
...
$img = A; --- "A" is the name of image that i put here:

<div style="'.$dstyle.' position: absolute; top: ' . $e_height . 'px; right: -30px; width: 18%; text-align: center; " class="os_dpe_marker m_energy" ><img src=" imotrust.pt/components/com_osproperty/images/'.$img.'.png ">

Hi,
You can hack into the function : generateWaterMark in file
components > com_osproperty > helpers > helper.php to change the watermark function.
Currently, this function is getting configure parameters for adding watermark image. But you can change it to get the EPC value to add into property's pictures
Thanks
Dam

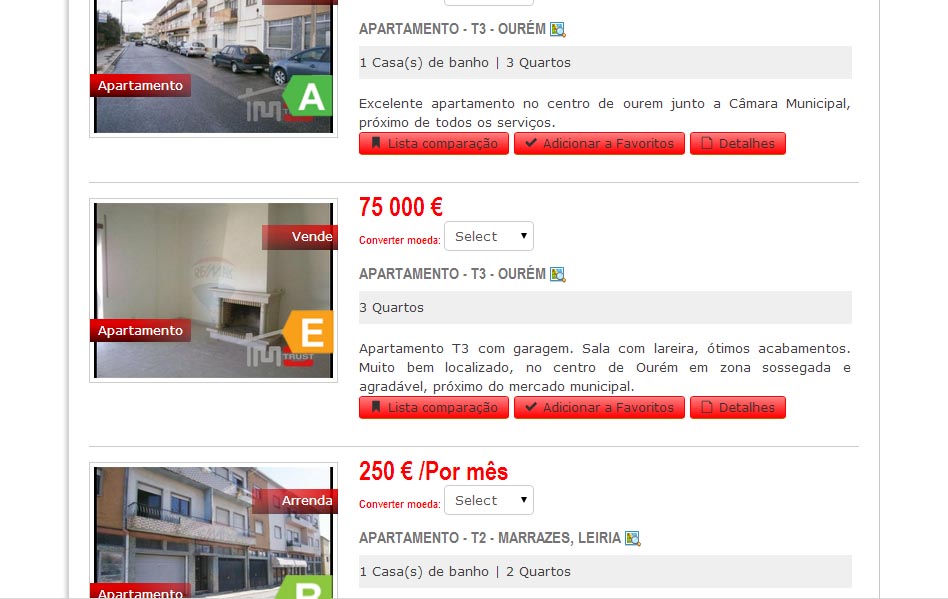

Sorry, i dont want chance The watermark, but do sonething like The category type, Take The parameters img from graph funtion but i dont now how. Can tou help me doing that?

They are some good things to future update we cab help mutualy.

Thanks, i apretiate your help

Hi,
OK, you can check the listing layout:
components > com_osproperty > template > current_template > listing.html.tpl.php
for example, theme1
find this code
<div class="ospitem-watermark_category">
<?php echo $row->category_name;?>
</div>
<div class="ospitem-watermark_types">
<?php echo $row->type_name;?>
</div>

Thanks
Dam

Yes, i now... i dont now how can i put the marker image of graph.

like:

<img src="imotrust.pt/components/com_osproperty/images/'.$img.'.png">

$img - stay on graph funtion

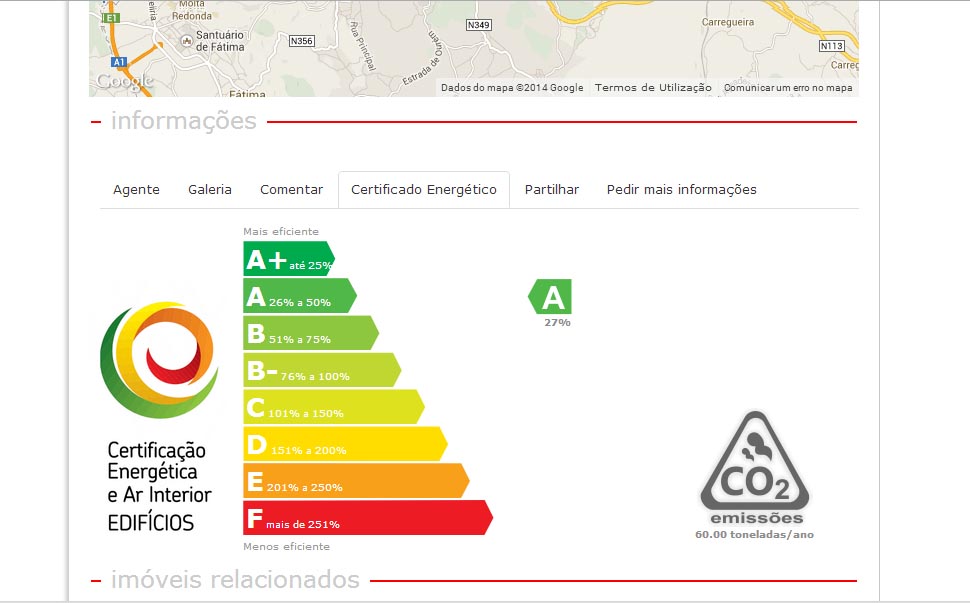

Because is a image that say the class(steps) of energy of the property (A+,A,B,B-,C,D,E or F),

Hi,
I think, you need to change the configure options of OS Property too. It will need quite a lot of work. Now, if you go to Configuration page > Tab Property. You will see a list of EPC levels. A,B,C,D,E,F. You must change it to add A+, B-.
The configuration MySQL table is: #__osrs_configuration
Configuration source file for tab Property is: administrator > components > com_osproperty > classes > configuration > Property > property.php
And then, you will need to hack into file common.php to show those EPC levels
Good luck
Dam

Hi,
I already have the graphic working, i already do this in last week, i dont now what is the code that i need to put on listing.html.tpl.php

<div class="ospitem-watermark_category">
<?php echo $row->category_name;?>
</div>
<div class="ospitem-watermark_types">
<?php echo $row->type_name;?>
</div>

i create a new div and on css:

<div class="ospitem-watermark_energy">
<img src="imotrust.pt/components/com_osproperty/images/'.$img.'.png"> which code should I use the $img dont work
</div>

Thanks, i apretiate your help
